Many medical components are labeled “unmoldable” during early design reviews. In many cases, that conclusion comes from applying traditional rules instead of using DfM for micro molding.
At the macro level, standard design for manufacturing practices work well. However, when features move into the micron range, those same rules can limit what is possible.
DfM for micro molding is not a scaled-down version of conventional DfM. It requires a different way of thinking about design, manufacturing, and cost.
At this scale, three major shifts occur.
1. Tolerances must match true function
Designers often apply extremely tight tolerances across an entire part. At the micro level, this approach creates unnecessary complexity.
Instead, teams should:
- Identify which features drive performance
- Tighten tolerances only where needed
- Relax tolerances elsewhere to improve manufacturability
This approach increases process stability and supports scalable production.
2. Yield and cycle time drive cost
Material cost matters less in micro molding than many expect.
When thousands of parts can be produced from a single pellet, resin price has limited impact on piece cost.
Instead, cost is driven by:
- Cycle time
- Yield (scrap vs good parts)
Improving either factor has a direct effect on overall economics. Designs that support faster cycles and higher yields will scale more efficiently.
3. Assembly must be addressed early
Manual assembly becomes difficult at the micro scale. Small components increase:
- Handling challenges
- Scrap rates
- Operator fatigue
For this reason, DfM for micro molding should prioritize:
- Component consolidation
- Two-shot molding strategies

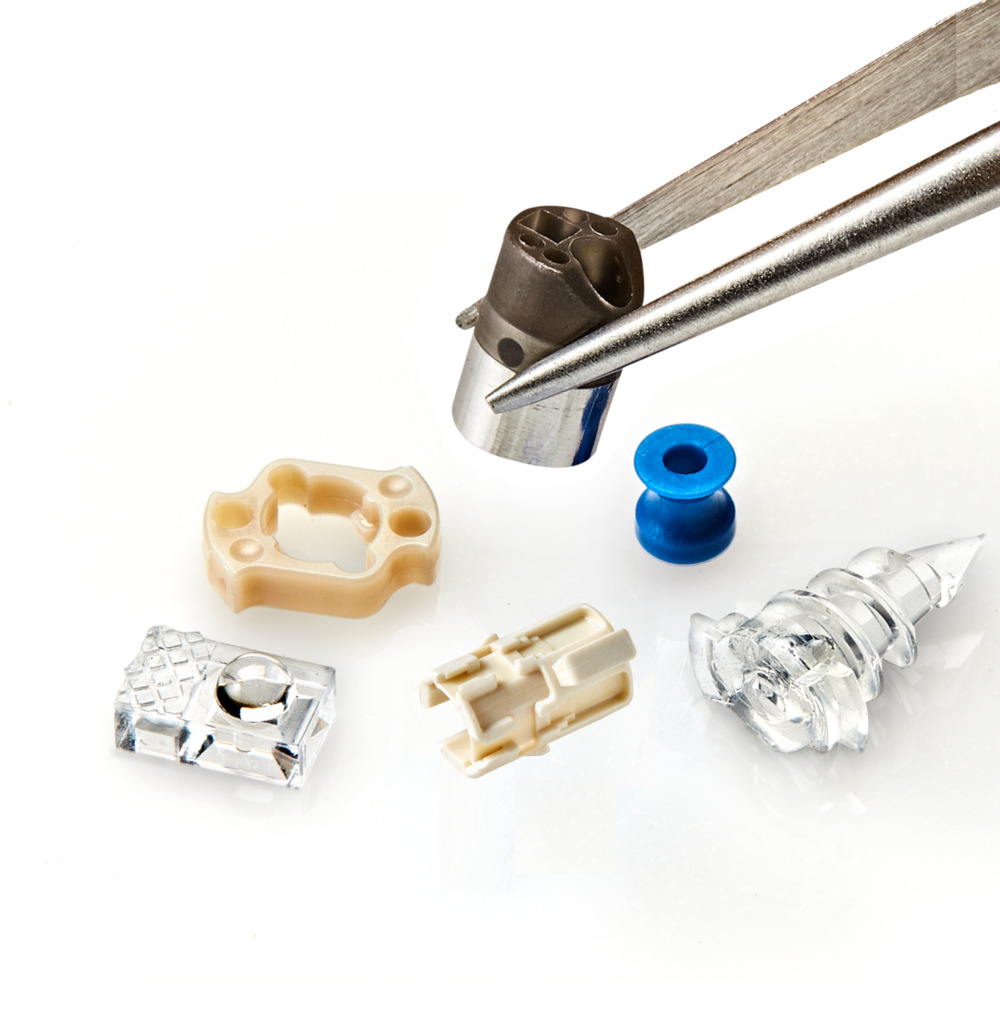

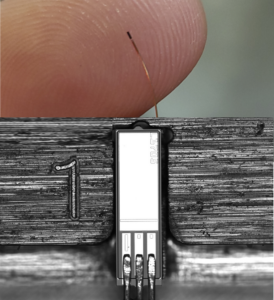

- Design for automation
Addressing assembly during early design reduces downstream risk and cost.
The five elements of DfM for micro molding
The core framework of DfM remains the same. However, each element carries more weight at the micro scale.
Process
Injection molding at the micro level requires tighter control and specialized tooling. Small changes in process parameters can impact part quality.
Design
Geometry must support both manufacturability and function. Small features, high aspect ratios, and complex shapes require careful evaluation.
Material
Material behavior becomes critical. Flow characteristics, viscosity, and additives can determine whether a part fills correctly or fails.
Environment
Medical applications introduce requirements such as:
- Biocompatibility
- Chemical resistance
- Sterilization compatibility
These factors influence both material and design decisions.
Testing and compliance
Verification becomes more complex as features shrink. Parts must be designed so they can be measured and validated consistently.
Designing for micro: key considerations in DfM for micro molding
When developing micro-scale components, several design principles can improve outcomes.
Optimize material selection
High-flow materials often perform better in thin walls and micro features. Material choice should support complete mold filling and long-term reliability.
Plan gating early
Gate location has a greater impact at the micro scale. A gate vestige that seems small can exceed the thickness of the part itself.
Designs should include:
- Defined gate locations
- Space for proper flow
- Consideration of cosmetic and functional surfaces
Rethink draft angles
Traditional guidelines suggest larger draft angles. In micromolding, reduced draft or even localized no-draft conditions can be beneficial in certain cases.
Evaluate tooling constraints
Micro-scale tooling introduces challenges such as:
- Limited space for slides and cams
- Fragile steel conditions
- Increased maintenance considerations
Design decisions should account for long-term tool performance, not just initial feasibility.
Design for integration
Combining components can reduce assembly steps and improve yield. Two-shot molding or overmolding strategies often provide more efficient solutions.
What real-world applications show
When these principles are applied, designs that appear infeasible can become scalable solutions.
Examples include:
- Microfluidic components with channels below the visible range

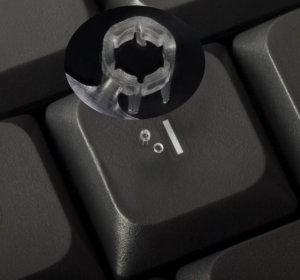

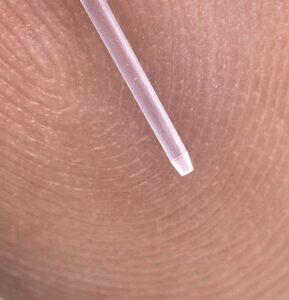

- Thin-wall cannulas with high aspect ratios
- Complex multi-material components produced in a single tool
In each case, success depends on aligning design intent with manufacturing capability early in the process.
Why this shift matters
As medical devices continue to shrink, the demand for precision increases. Smaller components enable:
- Less invasive procedures
- Faster recovery times
- More targeted therapies
However, these benefits depend on manufacturability. A design that cannot scale will not reach patients.
Moving forward
Micro-focused design requires a shift in thinking. It starts with understanding how design decisions impact manufacturability at the smallest scale.
Applying DfM for micro molding early in development helps teams avoid unnecessary constraints and build solutions that are both functional and scalable.
At Nissha Medical Technologies, this approach supports the development of high-precision components designed for real-world production.
